Wind Turbine Generator
Product Description

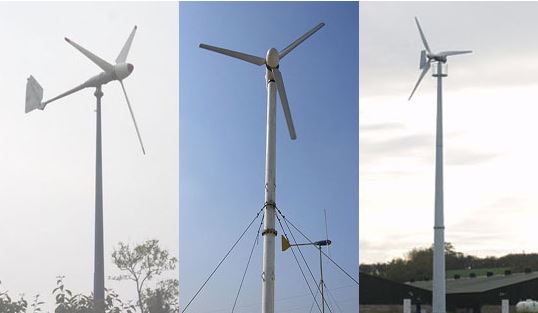

Wind Turbine Generator
Wind-driven generators converts the wind energy into the mechanical energy and in turn, into electricity. By generating power using the wind force and accumulate it in the storage batteries, they can convert the stored power into alternating current. Featured by the fact that no fuel is needed, the pollution-free and noise-free wind-driven generation can be generally used where there is much wind and where it is remote from power grid or where the power grid does not work well, for the industrial and domestic use.
Technical Specification
Construction of the Wind Generator: Wind Wheel, Tail Vane, Stand, Power System, etc.
The Power System includes: Electrical Box, Storage Cell Unit, Cables, Wires, etc.
Specification:
200W-2KW Wind Turbine |
ITEM NO.: |
WT-200 |
WT-300 |
WT-400 |
WT-500 |
WT-600 |
WT-1000 |
WT-2000 |
WT-2000E |
Rated power（W） |
200 |
300 |
400 |
500 |
600 |
1000 |
2000 |
2000 |
Rated voltage（V） |
24 |
24 |
24 |
24 |
24 |
48 |
120 |
120 |
Rotor diameter(m) |
1.8 |
2.3 |
2.3 |
2.6 |
2.6 |
2.9 |
3.3 |
3.3 |
Start-up wind speed（m/s） |
2.5 |
2.5 |
2.5 |
2 |
2 |
2 |
2 |
2 |
Rated wind speed（m/s） |
6 |
12 |
12 |
8 |
8 |
9 |
9 |
9 |
Security wind speed（m/s） |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
3KW- 100KW Wind Turbine |
ITEM NO.: |
WT-3000 |
WT-3000E |
WT-5000 |
WT-10K |
WT-20K |
WT-30K |
WT-50K |
WT-100K |
Rated power（W） |
3000 |
3000 |
5000 |
10000 |
20000 |
30KW |
50KW |
100KW |
Rated voltage（V） |
240 |
240 |
240 |
240 |
360 |
380 |
492 |
492 |
Rotor diameter(m) |
4.5 |
4.5 |
5.8 |
8 |
10 |
12.6 |
14 |
25 |
Start-up wind speed（m/s） |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
Rated wind speed（m/s） |
10 |
10 |
12 |
12 |
12 |
12 |
12 |
13 |
Security wind speed（m/s） |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
-----------------------------------------------------------------------------------------------------------------
Product Description
Wind & Solar Hybrid Energy System
We design two power system into one combined one, just in order to guarantee with the power is enough to be charged in the solar battery everyday, if some day there is sunlight but without the wind energy, the solar panel charge the battery. The other way round, if some day there is wind energy but without the sunlight, the wind turbine can charge the power to the battery. When someday both wind & solar energy is enough, both can charge the battery. When the night is coming, the wind turbine is also can continue to work for supply the power to the system, so we sure the system will be popular in the coming future.
System Introduction
1)Wind Turbine:24V/5000W
2)Solar Panel: Mono-crystalline solar modules(24V/100W, 8pcs), life time more than 20 years
3)Battery: highly reliable maintenance-free lead-acid storage battery, 3×24V200Ah
4)Control system: special microcomputer intelligent controller (Light & time control, over-charging protection, over-discharging protection)
5)Tower Material:Metal structure(thermal galvanization/plastic coating)
6)Tower height : 12M(special requirement is available)
7)We can supply whole set of combined energy system as well as only the wind turbine,solar panel, battery, controller and installation parts without tower
Technical Data( Wind Turbine)
Rated power(W): 5000
Rotor Diameter (M): 5
Rated wind speed (M/S): 10
Startup wind speed (M/S): 3
Working wind speed (M/S): 4 - 25
Survived wind speed(M/S): 50
Rated Voltage (v) :DC24/36
Material and number of the blades: Reinforced fibber glass

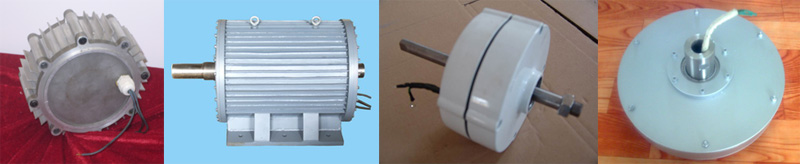

Generator style: Three phase, permanent magnet
Speed regulation method: Tail furl and Electronic controller
Stop method: Manual mechanical brake and electronic brake
___________________________________________________________________________________________

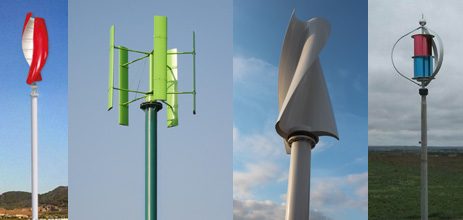

Vertical Axis Wind Turbine (VAWT)
VT-series wind turbine for the built-up environment with turbulence
Unlike those horizontal axis wind turbine to be directed in the direction of the wind, either by a tailvane or by a sensor based control mechanism – adding again to its cost, our VT-series vertical axis wind turbines do not need such a control system and are completely irrelevant from which side the wind blows.
Vertical axis wind turbines are able to utilize wind from any direction, including wind not entering perpendicular to the axis but for instance passing at an upward angle as is the case when passing over a building and convert that energy with an even higher efficiency into electricity. No other turbines have been found in the literature that is equably suited to utilize the ever-changing wind within city limits. Constantly shifting winds, a serious problem for the normal wind turbines, are an extra stimulant for vertical axis wind turbines.
Because VT series have an odd number of blades (3 or 5) of winglike blades with a fixed distance to the shaft, they can achieve a low noise level, high aerodynamic efficiency, no noticeable vibration and maintenance free.
Specification:
Item No.: |
VT-0.5K |
VT-1K |
VT-2K |
VT-3K |
VT-5K |
VT-10K |
VT-20K |
VT-25K |
VT-30K |
VT-50K |
Operation |
|
|
|
|
|
|
|
|
|
|
Start-up wind speed |
2.5 m/s |
2.5 m/s |
2.5 m/s |
2.5 m/s |
2.5 m/s |
3 m/s |
3 m/s |
3.5 m/s |
3.5 m/s |
3.5 m/s |
Cut-in wind speed |
3.5 m/s |
3.5 m/s |
3.5 m/s |
3.5 m/s |
3.5 m/s |
4 m/s |
4 m/s |
4.5 m/s |
4.5 m/s |
4.5 m/s |
Rated wind speed |
10 m/s |
10 m/s |
10 m/s |
10 m/s |
10 m/s |
11 m/s |
11 m/s |
11 m/s |
11 m/s |
11 m/s |
Cut-out wind speed |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
25 m/s |
Survival wind speed |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
45 m/s |
Rated rotation speed |
180~320rpm |
150~290 rpm |
150~290 rpm |
108~206 rpm |
108~206 rpm |
78~150 rpm |
66~130 rpm |
63~121 rpm |
54~103 rpm |
42~81 rpm |
Rated power |
0.5 kW |
1 kW |
2 kW |
3 kW |
5 kW |
10 kW |
20 kW |
25 kW |
30 kW |
50 kW |
