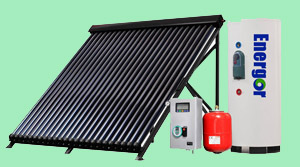

Solar Heating System( Split type)

ITEM NO.: SH-0061

The separate pressurized solar water heater compose of solar collector, storage tank, controller, working station and installation parts.

Working principle:
1) When the discrepant temperature of the solar collector and water tank reaches the set value, the controller shall start the circulation pump automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by heat exchanger in the
water tank.
4) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device.
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically
Features
1) Collector separates with the storage tank. The tank can be put anywhere of the house.
2) The collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) Multifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyable

We can provide and adjust our products according to customers specific requirement,so that solar water heater will be with a superior performance in all weather conditions.

The main components of the split Solar Heating System:

Solar collector
Pump station including:
Circulation pump,
Check valve,
Intelligent controller with sensors,
Brass connector
Solar storage tank from 100L to 500L

★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★

Product Description

Flat Plate Solar Water Heater(150L/300L Pressurized)

1.Installing conveniently

Split solar hot water system is two circulating split pressurized system. Solar collector can be installed on several locations, such as the roof, wall and balcony. Installing location of water tank is also unlimited basically.

2.Pressurized operation
Pressurized capacity is 0.6Mpa, designed pressure reach 1.2Mpa; the hot water is forced to stream out from the top; it is convenient to use.

3.Long using life
Inner tank is 2mm high quality steel with 4mm cross linked polyethylene; resist high temperature and corrosion; 15 years using life.

4.High heat efficiency
Heat exchange by copper pipe inside water tank.

5.Good temperature preservation
Thicker Insulation layer; constant temperature high pressure quantitative foam; better heat preservation performance.

6.Safe and steady
Control system features the functions of opening check-itself, water temperature display, temperature difference circulation, constant temperature heating, Timing heating, water temperature presetting, and electricity leakage protection. Using conveniently, safe and steady.



Item No.:	SH-1180	SH-1181
Capacity of Tank	150L	300L
External Diameter of Tank	650mm
Externla Diameeter of Inner Tank	500mm
Material of Shell	Colorful Galvanized Steel
Materila of Inner Tank	Q235+Crosslinking Polyethylene
Thickness of Inner Tank	2mm Thickness Q235 + 4mm Thickness Crosslinking Polyethylene
Insulation Material	Polyurethane
Working Pressure	0.6Mpa
Thickness of Insulation Material	75mm
Joint of Tank	G3/4"Outer Thread
Joint of Cycle Pipe	G3/4'Outer Thread



★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★



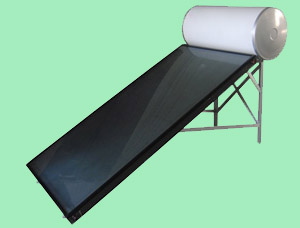

Flat Plate solar collector



Characters:

*Magnetic blue sputtering coating has higher absorption rate to ensure the high efficiency even winter or overcast days. *Special Anodized aluminum alloy frame to ensure aesthetic appearance and can accept high pressure without leakage. * Copper tube can ensure the high efficiency and good heat *50mm fiberglass insulation and EPDM seal strip to assure the solar collector can work under harsh and very cold temperature. *Operation Temperature -33℃～120℃. *Low iron, high transparency glass (32mm thickness) is not easy broken with very high transmission and low emission to ensure high solar yields. *With textured aluminium sheet on the rear side, the total design is extremely resistant to atmospheric impacts and temperature oscillations.

Detail makes perfect!



Model		Item No.
		PL-0101	PL-0102	PL-0103	PL-0104	PL-0105	PL-0106
gross surface area（㎡）		2.57		2.22		2.03
opening surface area（㎡）		2.31		1.98		1.80
absorber area（㎡）		2.28		1.95		1.77
dimensions（mm）（Lx W x H）		2167x1230x100		2072x1115x100		2011x1054x100
net weight （kg）		46		41		38
medium capacity （L）		1.5		1.3		1.2
Transparent Cover board	collector glazing	3.2mm, low –iron ,ultra transparent clear glass / tempered glass
		flat glass	mistlite	flat glass	mistlite	Flat mistlite	mistlite
	thickness（mm）	3.2
	quantity	1
	cover transmission（%）	91.02
collector	selective solar absorber	Vacuum magnetic control sputtering coating
	absorption（%）	95±2
	emission（%）	5±2
way to connect absorber and pipes		Laser welding
header tuber (diameter)		φ22 copper
tuber type		Grid type
insulation layer	material	Fiber glass wool
	thickness（mm）	45
frame	material	Aluminum 6063
	color	Silver / grey / black
basin	material	Anticorrosion aluminum
	thickness（mm）	0.7
sealing material		EPDM
Max. testing pressure of inner circulating（MPa）		1.2
operation pressure of inner circulation（MPa）		0.6
efficiency（%）		80
conduction medium		Water / Galcol liquor
idle temperture		200℃
